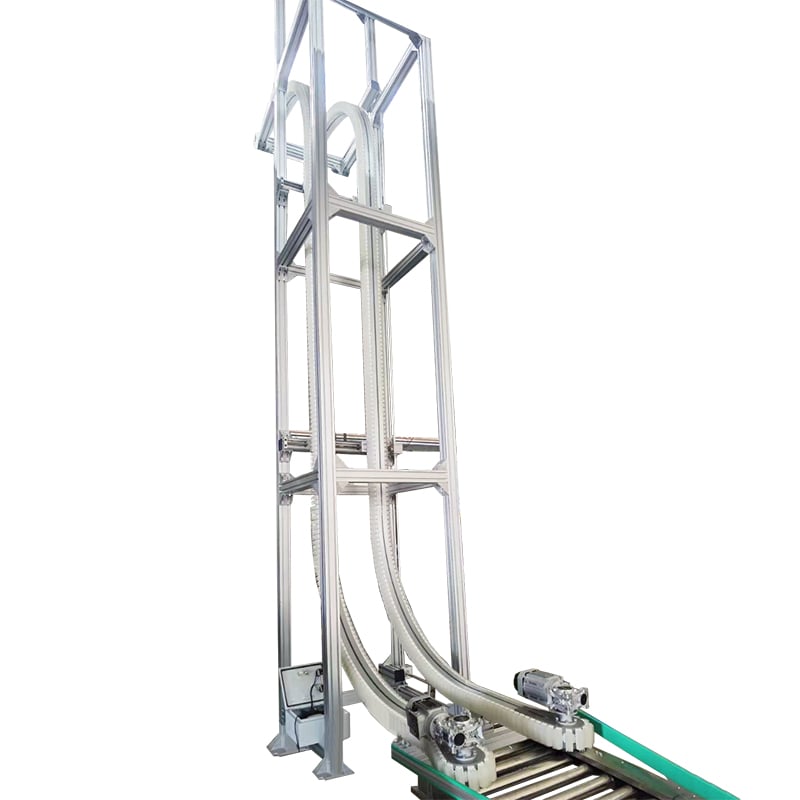

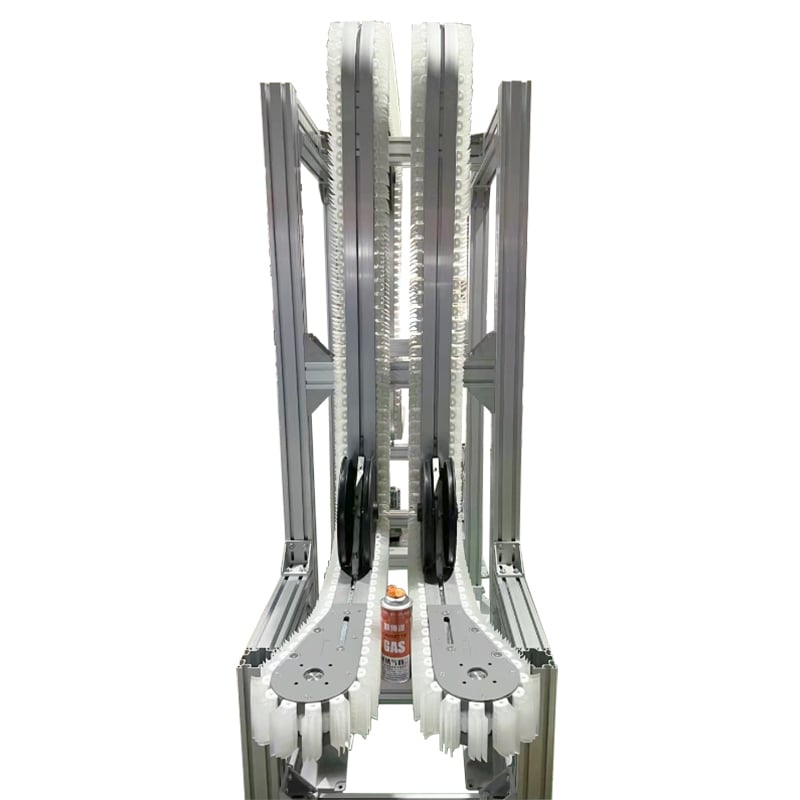

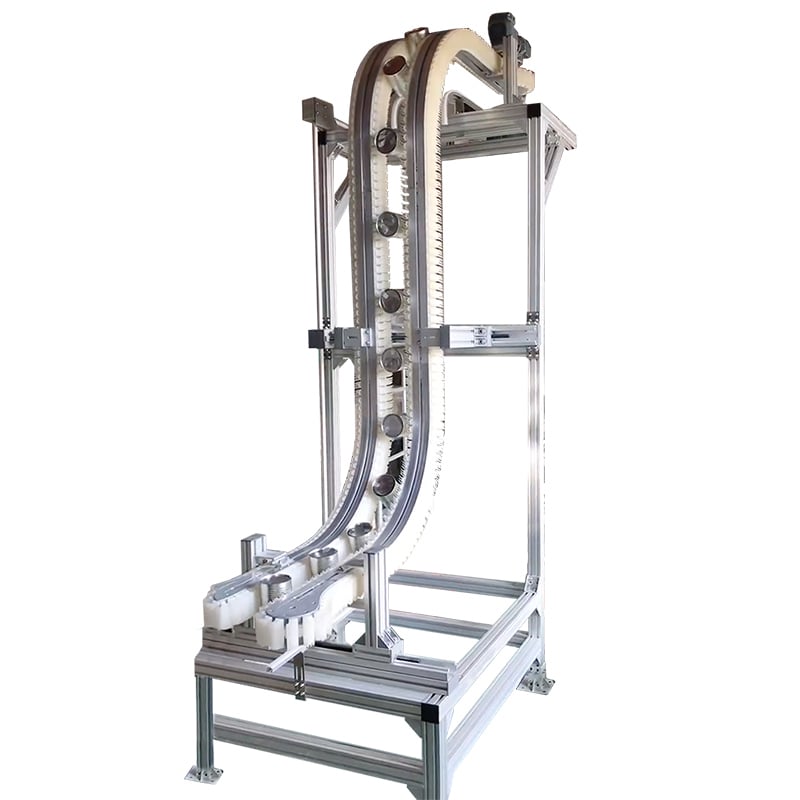

Flexible Chain Aluminium Profile Bottle and Box Gripper Conveyor for Vertical Transportation

Quick Detail:

1. Other product name: Flexible chain gripping conveyor, bottle gripper conveyor, wedge elevator, wedge elevator conveyor

2. Main function: Flexible chain gripper conveyor use two parallel flexible chain conveyor to lift and convey fixed products from floor level to higher level or from top level to floor level.

3. Key parameters:

Frame material: Aluminium Profile;

Chain width: 63mm/83mm/103mm;

Conveyor width: adjustable;

Conveyor height: 500-6000mm, customized;

Max loading total weight: 90kg;

Speed: 0-60m/min.

Description:

Flexible chain gripper conveyor, also commonly called wedge elevator conveyor, use two parallel flexible chain conveyor to lift and convey fixed products from floor level to higher level or vice versa. With flexible and modular structure, it could satisfy different layout requirements and free up the floor space in great deal during the transportation process. And it is convenient to link with other equipment in production to achieve continuous and rapid production of the production lines. It is a special conveyor that solves vertical lifting or crossing specific spaces.

Commonly with frame of aluminium profile, it is more suitable for products with lighter duty, such as bottles, cans, plastic boxes, cartons, and products packaged in cartons.

Applications:

Widely used in manufacturing industries such as food&beverage, pharmaceuticals, plastics, cosmetics, FMCG, electronic components, printing paper, and auto parts. The adjustable width function makes it can be used universally for various bottles, boxes, etc.

Specifications:

Competitive Advantage:

1) Fast and high speed vertical transportation;

2) Flexible and modular structure;

3) Small footprint and space-saving;

4) Easy to assemble and disasssemble;

5) Suitable for filling and packaging lines;

6) Convenient to connect with other production lines.
