Lifting Type Jacking Flat Roller 90 Degree Transfer Machine Pop Up Conveyor For Cartons and Boxes

Quick Detail:

1. Other names: Jacking transplanter, Jacking transfer machine, jacking roller transfer conveyor, Pop up transfer conveyor, Pop up transfer, Pop up diverter.

2. Main function: Pop up conveyor is used to change the conveying direction of items and move items from cross lanes into or out of the main conveyor line.

3. Key parameters:

Transfer speed: 20-50m/min;

Diverting efficiency: 1500-2000pcs/h;

Roller material: Stainless steel/galvanized steel;

Width: 400-2000mm;

Length:500-1500mm;

Stroke: 10-50mm;

Transfer machine type: Roller transfer/chain transfer

Description:

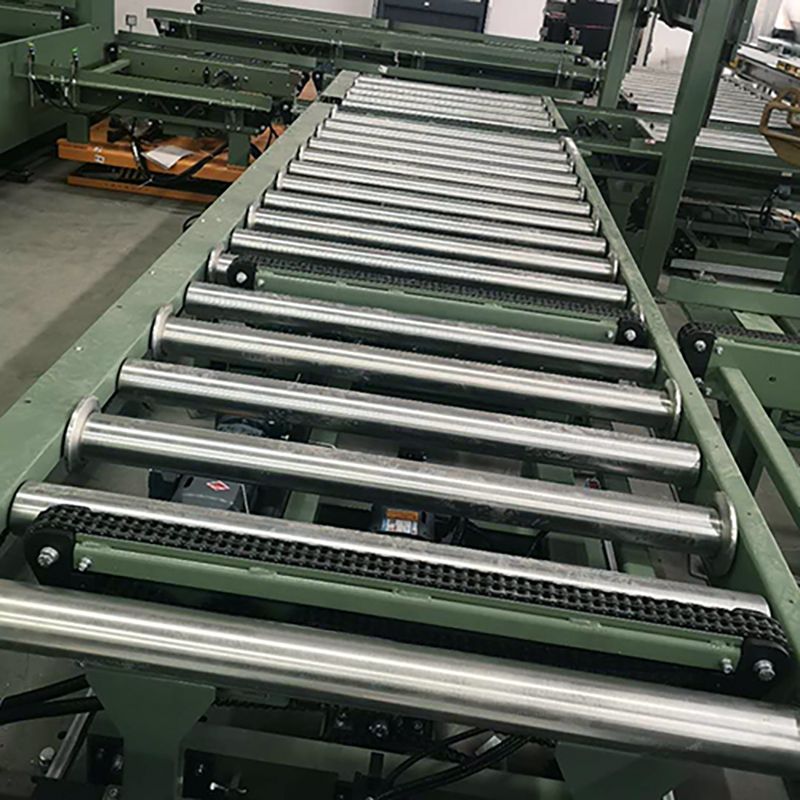

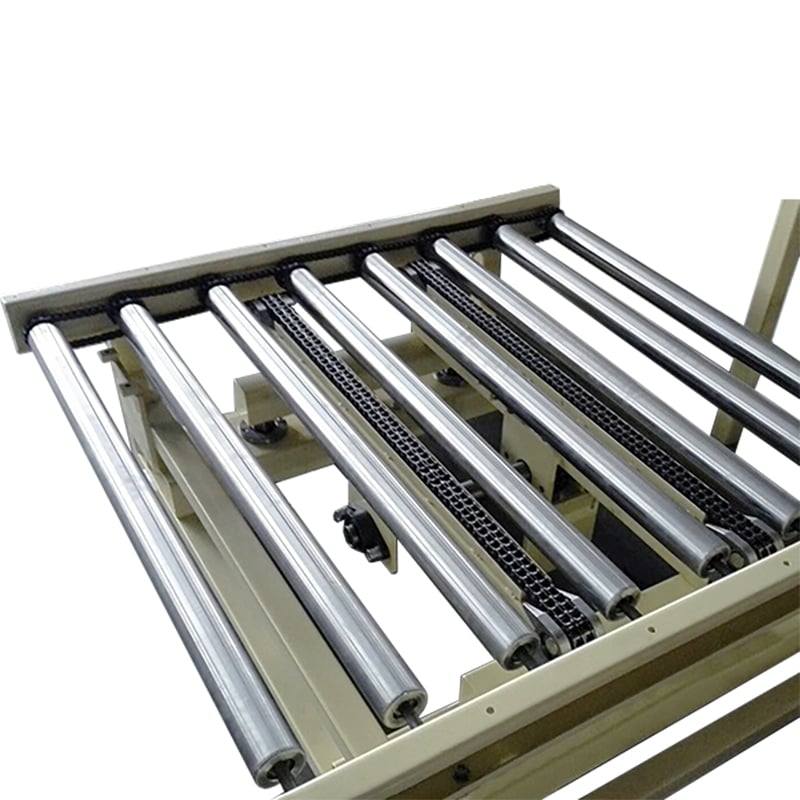

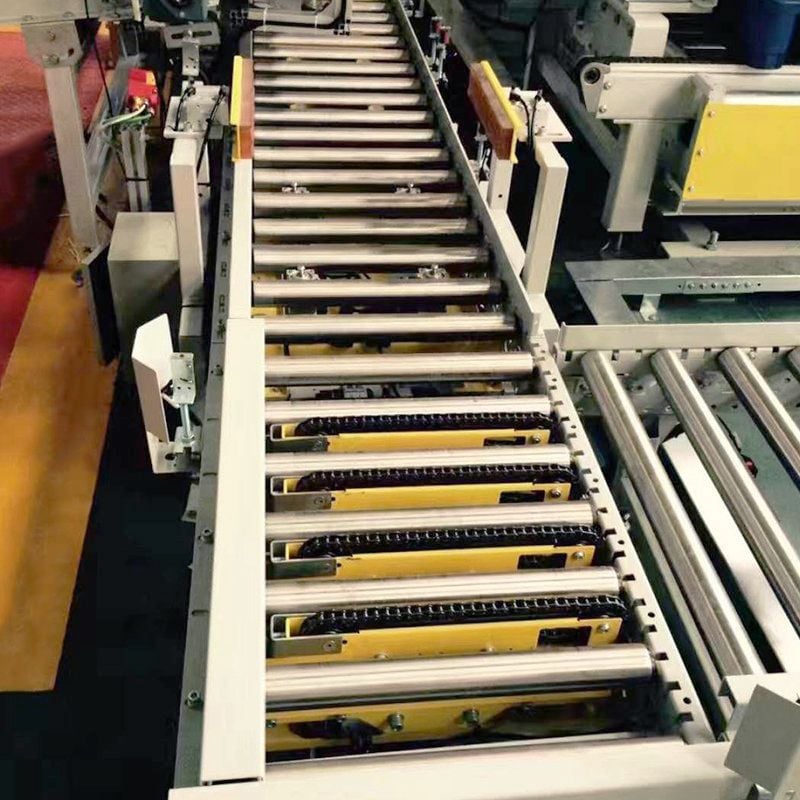

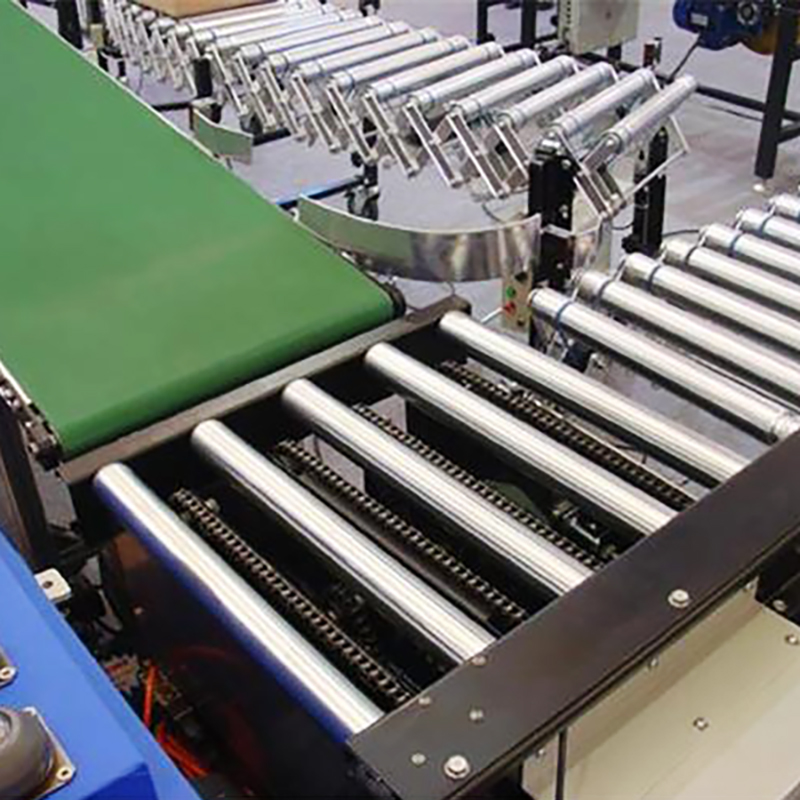

Pop up conveyor is used to lift a heavy products, such as containers, cartons, or boxes, and divert it to 90° angle to another conveyor line. Its main function is to achieve fast, safe and efficient transfer of goods between different locations by utilizing hydraulic or mechanical power for lifting and transition operations.

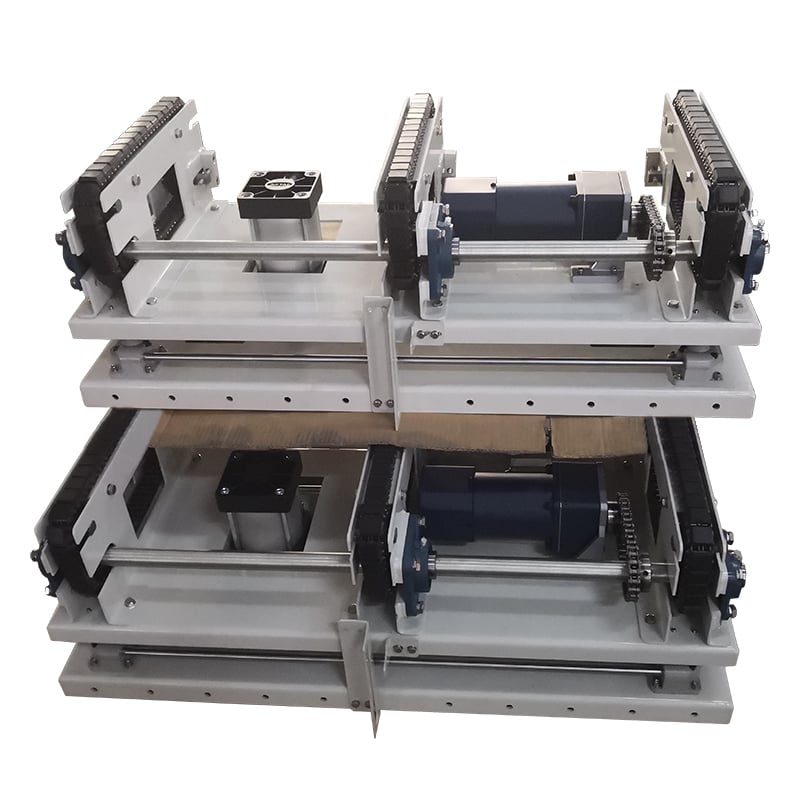

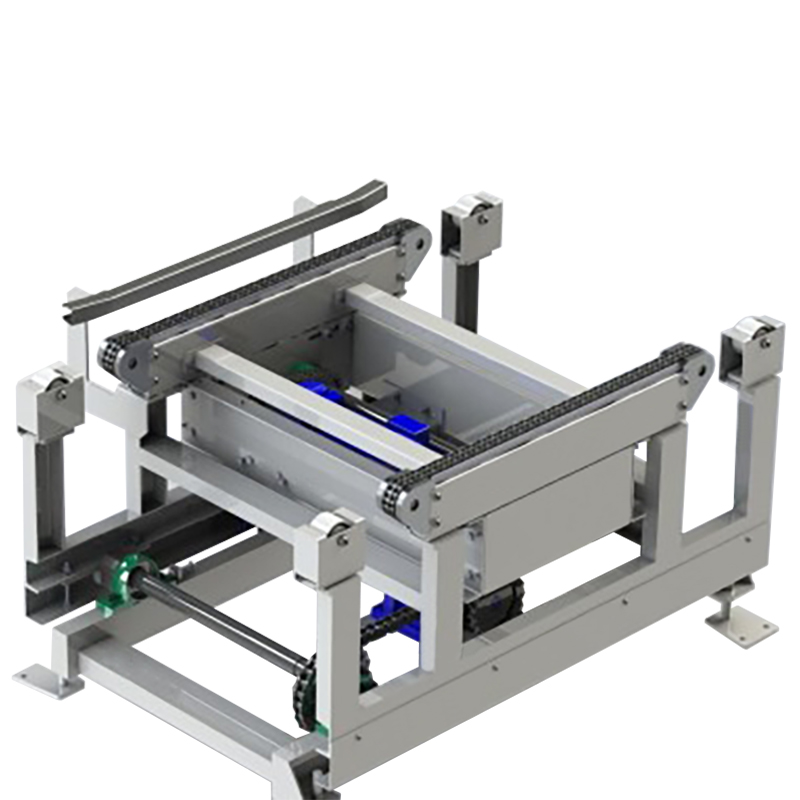

It is composed of multiple components, including lifting device, conveying device, control system, etc. Among them, the lifting device is a key part to achieve the vertical movement of the products, usually using mechanisms such as hydraulic cylinders or screw transmission. The conveying device is responsible for moving the lifted object horizontally to the target position. Common structures include rollers or belts. The control system is the intelligent core of the entire mechanism for precise control and monitoring of lifting and movement.

Applications:

Pop-up conveyor is widely used in food&beverage industries, warehouse&logistics industries, automotive industries, medical device industries, appliance industries, glass and other industries.

Specifications:

Competitive Advantage:

1) Simple and modular structure

2) Easy to maintenance and disassembly

3) Large loading capacity, suitable for heavy products

4) Stable lifting and reliable positioning

5) Convenient and efficient for transferring and diverting
