Introducing the Heavy-Duty Wheel Telescopic Boom Loader Fertilizer Bag Loading Conveyor for 20foot Container. This method revolutionary a must-have for every company that have to go hefty bags of fertilizer, soil, or other materials that are comparable.
The Heavy-Duty Wheel Telescopic Boom Loader Fertilizer Bag Loading Conveyor for 20foot Container is straightforward to work well with and developed to optimize effectiveness. A telescopic is had by the merchandise growth that may are as long as 4 meters, letting you load and unload materials in hard-to-reach areas. The conveyor comes with heavy-duty tires that will up manage an abundance of to 2000kg, so that you can effortlessly go bags of fertilizer in one spot to another.
Among the best top features of the product is its flexibility. The Heavy-Duty Wheel Telescopic Boom Loader Fertilizer Bag Loading Conveyor for 20foot Container can be employed with any container 20-foot allowing you to transport your materials in one location to another effortlessly. The merchandise is made to be compact and easy to help keep you should definitely being used, to conserve yourself room and time.
The Heavy-Duty Wheel Telescopic Boom Loader Fertilizer Bag Loading Conveyor for 20foot Container consists of top-notch materials that can endure. The item was created to withstand hefty usage and harsh climate conditions, rendering it an ideal selection for companies that are looking for a dependable and conveyor system durable.
An additional benefit utilizing the Heavy-Duty Wheel Telescopic Boom Loader Fertilizer Bag Loading Conveyor for 20foot Container is its simplicity of good use. The merchandise is user-friendly and will be operated by anybody, also people who have small to no expertise in running a conveyor system. The item features a individual manual, which gives step by step directions on how best to run and continue maintaining the conveyor system.

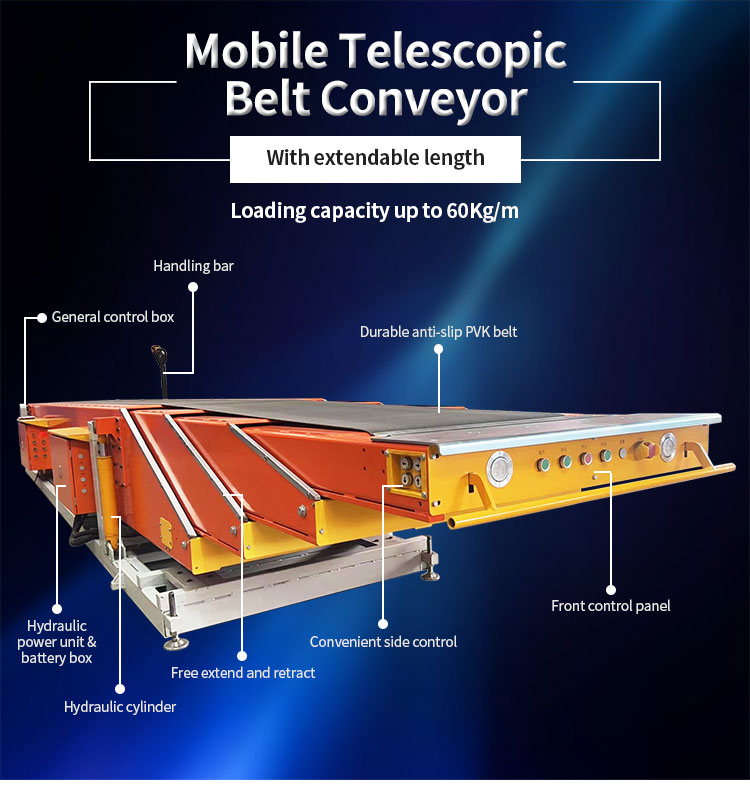

Mobile Telescopic Belt Conveyor

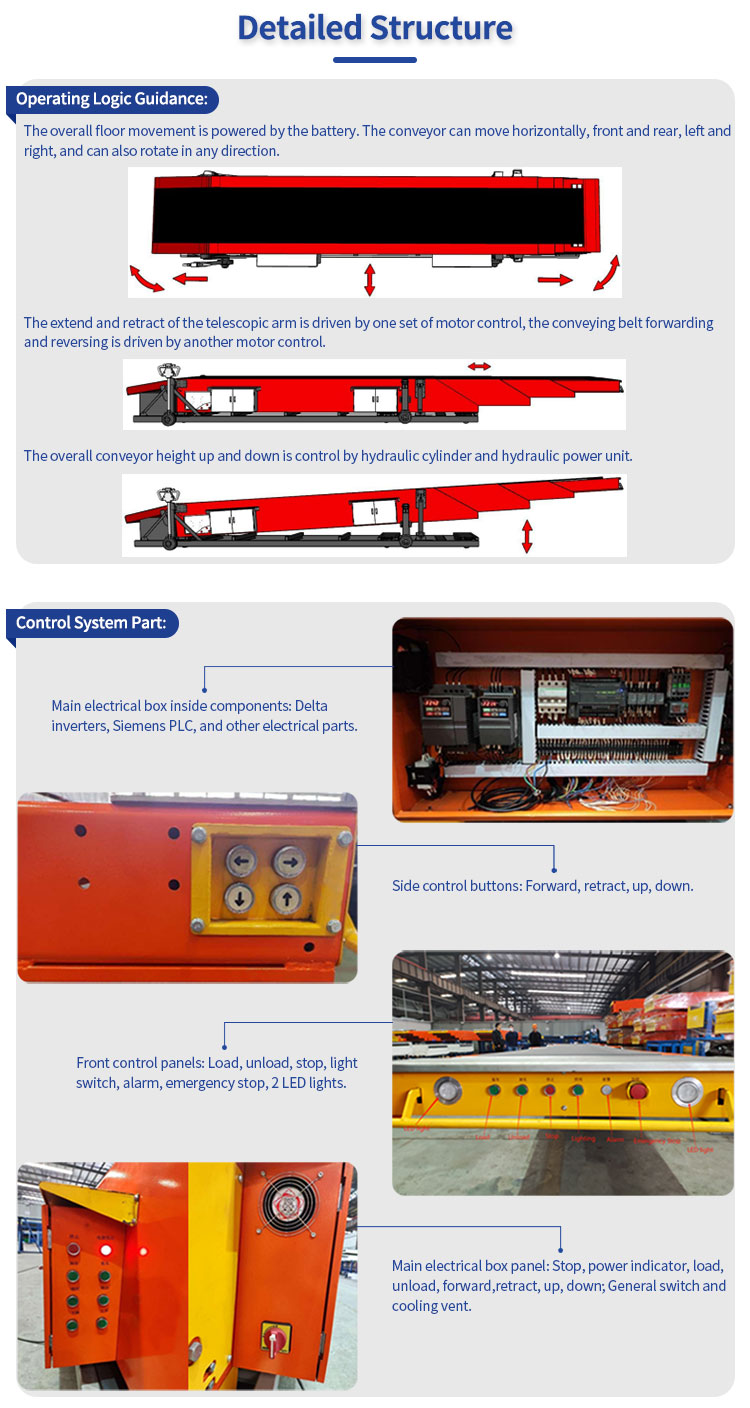

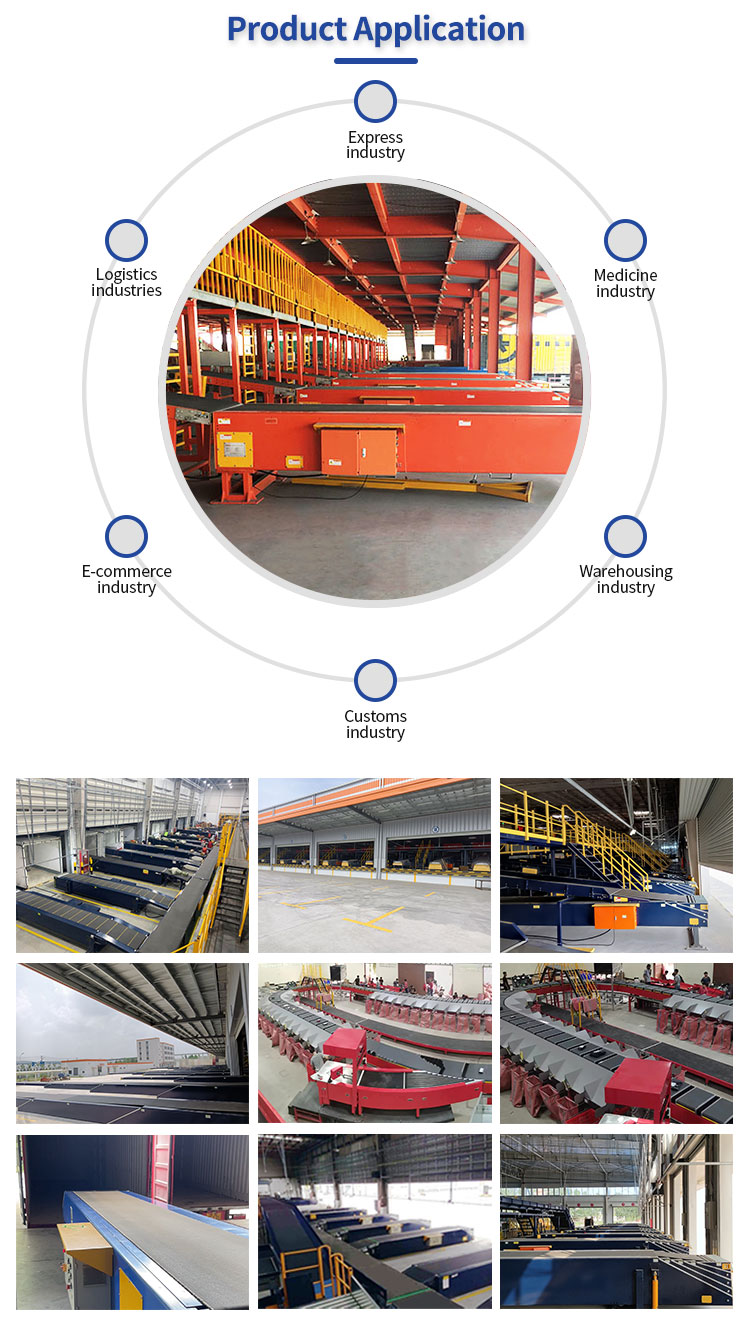

Telescopic belt conveyor could load and unload goods safely and efficiently with extendable length. It is widely used in logistics, ports,docks, stations, airports and warehouses, involving industries of post, home appliances, food, tobacco and light industry. For mobile type of telescopic belt conveyor, Its biggest advantage is the ergonomic operating conditions. The overall movement of the equipment in any direction can be realized by controlling the handle to reach the position specified by the customer. Then, by operating the button, the telescopic movement of the telescopic machine can reach the position required by the operator, and easily and efficiently complete loading and unloading of goods. The overall and telescopic movement is quickly fed back to operator through motor driven.

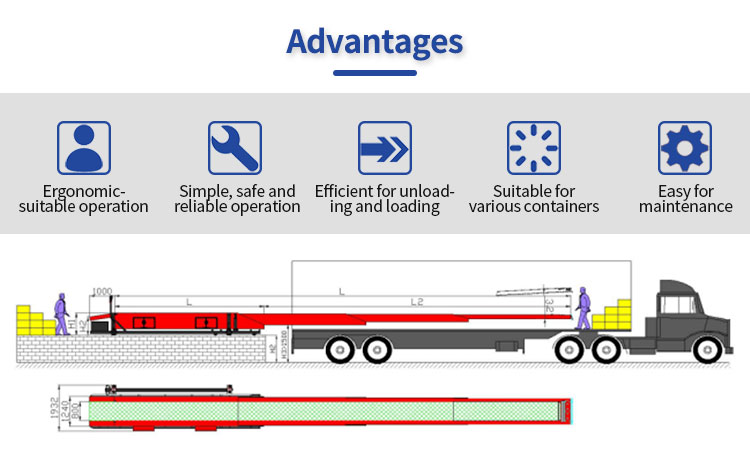

Basic Dimensions | |||||||||
Type |
Model No. |
Section |
L1(mm) |
L2(mm) |
L(mm) |
H1(mm) |
H2(mm) |
Belt Width(mm) |
Counter weight(t) |
Electrical Roller Type |
SC-T800S4M-5.0/10.0E |
4 |
5000 |
10000 |
15000 |
920 |
750 |
800 |
3 |
Drive Roller Type |
SC-T800S4M-5.0/10.0D |
4 |
5000 |
10000 |
15000 |
920 |
750 |
800 |
3 |
Electrical Roller Type |
SC-T800S4M-6.0/12.3E |
4 |
6000 |
12300 |
18300 |
920 |
750 |
800 |
3 |
Drive Roller Type |
SC-T800S4M-6.0/12.3D |
4 |
6000 |
12300 |
18300 |
920 |
750 |
800 |
3 |
Electrical Roller Type |
SC-T800S4M-7.0/15.0E |
4 |
7000 |
15000 |
22000 |
920 |
750 |
800 |
4 |
Drive Roller Type |
SC-T800S4M-7.0/15.0D |
4 |
7000 |
15000 |
22000 |
920 |
750 |
800 |
4 |
Electrical Roller Type |
SC-T800S4M-7.5/16.0E |
4 |
7500 |
16000 |
23500 |
920 |
750 |
800 |
4 |
Drive Roller Type |
SC-T800S4M-7.5/16.0D |
4 |
7500 |
16000 |
23500 |
920 |
750 |
800 |
4
|
SmartConvey Automation (Shanghai) Co., Ltd. is an integrated company of R&D, design, sales and service. Our headquarter is in Shanghai, and production bases are located in both Shanghai and Jiangsu. Committed to the R&D and manufacturing of intelligent sorting systems, conveyor systems, and conveyor accessories, we have rich and professional experience in these areas. After years of development, we have developed a variety of conveyor accessories products, accumulated a lot of experience in conveyor system design and sorting machine system design and manufacturing experience with core technologies, which can provide equipment manufacturers, system integrators and end users with complete solutions from accessory selection, product design to system integration.
In 2021, our company set up International Business Department. The team members have more than 10 years of overseas service experience and have provided great services to customers in more than 50 countries. In the future, we will be committed to establishing long-term and stable strategic cooperative relationships and agency partnerships with high-quality foreign customers, strive for the upgrade of the intelligent conveying system, and spare no efforts to promote the early arrival of the era of industrial wisdom
Why Choose us
vIndependent and experienced engineer team for technical support and R&D
vProfessional and responsible foreign trade team are familiar with the entire foreign trade process and international trade practices
vPremium quality with good configuration for the machines
vSupport OEM and ODM services, products could be customized
vOn-time delivery
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a trading company, but we have our stable and long-term cooperation factory.
Q2: Can you provide solution for whole plant project?
A2: Yes, we have our own project engineer, could design for your customized projects.
Q3: Do you manufacture hardware and R&D software?
A3: We make most logistics equipments for hardware, and completely R&D software, we have lots of experienced and skillful mechanical engineers, electrical engineers, software engineers.
Q4: What payment terms do you accept?
A4: T/T, L/C, Paypal, Alibaba Trade Assurance.
Q5: Hong long is your delivery time?
A5: Normally 30-45 working days after receiving of deposit.
Q6: Will it be difficult to assembly the machine on my own?
A6: Not, the machines will be packed in nearly completed structure. We will have guide manual and online technical support to help you. If need, technicians could go overseas to help with installation with cost by your side.
Q7: How long is your warranty period?
A7: Roller conveyors, and belt conveyors, sorter machines are guaranteed for 1 year under normal using condition.
