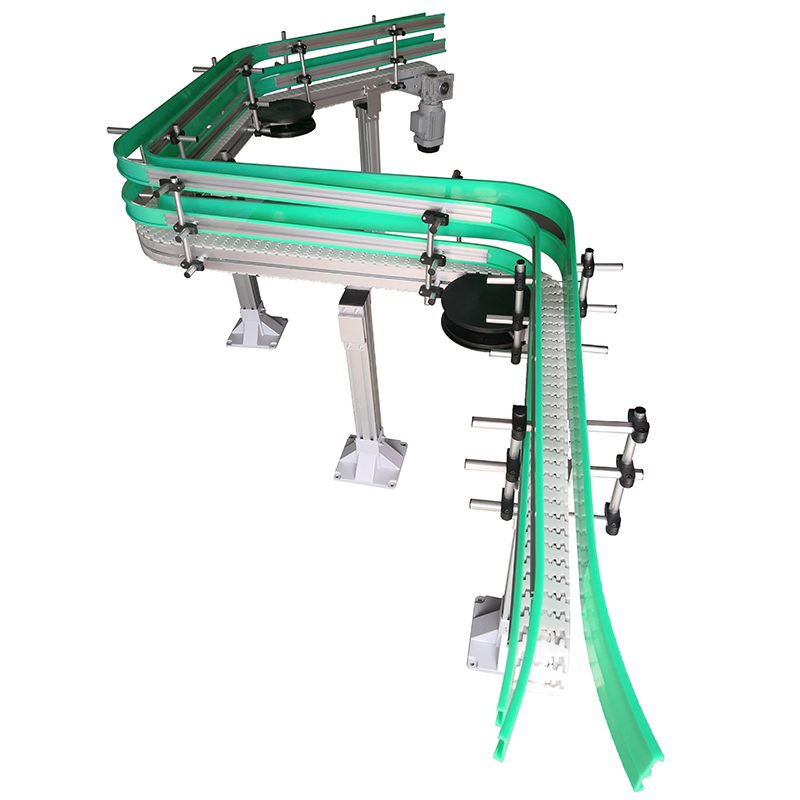

83mm Width Flexible Chain 90 Degree Curved Aluminium Profile Conveyor for Bottles and Cans Handling System

Quick Detail:

1. Other product name: Flexible chain conveyor, aluminium conveyor, curve chain conveyor, flexible conveyor system with bends, aluminium chain conveyors

2. Main function: Flexible chain conveyors, usually made of aluminium profile frame, with flexible chain as conveying carrier, are smooth and efficient conveyor solutions for transferring small and light products in various and flexible configurations. Such as straight conveying, curve conveying, inclined conveying, declined conveying, vertical gripping and etc.

3. Key parameters:

Frame material: Aluminium Profile;

Chain width: 63mm/83mm/103mm/140mm/175mm/295mm;

Chain material: POM/PP;

Conveyor width: adjustable;

Conveyor height: 500-6000mm, customized;

Conveyor configuration type: Straight, curve, incline, decline, etc.

Max loading total weight: 90kg;

Speed: 0-60m/min.

Description:

Flexible chain conveyors are the smooth and efficient conveyor solution for conveying small and light products in various and specific factory layouts. Made of aluminium or stainless steel frame, with flexible chain as conveying carrier, and the flexible bends angle of 30, 45, 90 and 180 degree, they could achieve different conveying requirements from clients, such as conveyor transferring horizontally(straight and curved), inclined and declined even vertically gripping.

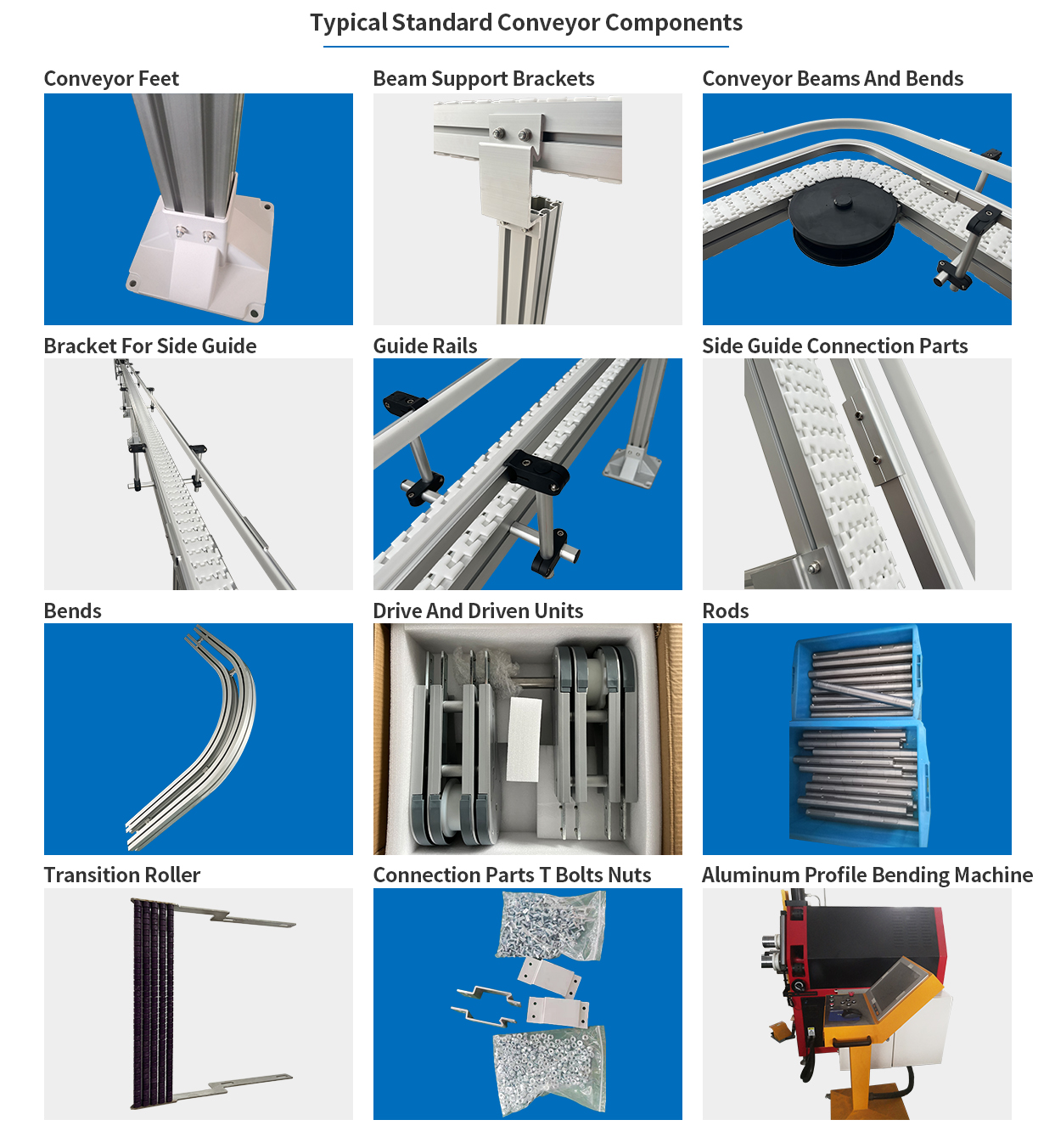

The structure of flexible chain conveyors is also very standard and simple, mainly consists of aluminium profiles, flexible chains, drive and driven units, bends, conveyor supports, side rails, rail brackets, and other connection accessories.

This type of conveyor can be large or small, can be freely expanded and contracted, and is easy to operate. It can achieve various functions of aggregation, diversion, sorting, and confluence. It can be equipped with various pneumatic, electric, motorized automatic control devices can form various forms of production lines according to the different needs of customers.

Applications:

Widely used in manufacturing industries such as food&beverage, medical and pharmaceuticals, electrical and electronics, bottles&cans, FMCG, paper handling, automotive, packing lines and etc.

Specifications:

Competitive Advantage:

1) Low noise and low friction;

2) Flexible and standard structure;

3) Small footprint and space-saving;

4) Easy to assemble and disasssemble;

5) Light duty and compact design;

6) Small turning radius and strong climbing ability;

7) Suitable for various conveying requirements from customers.
