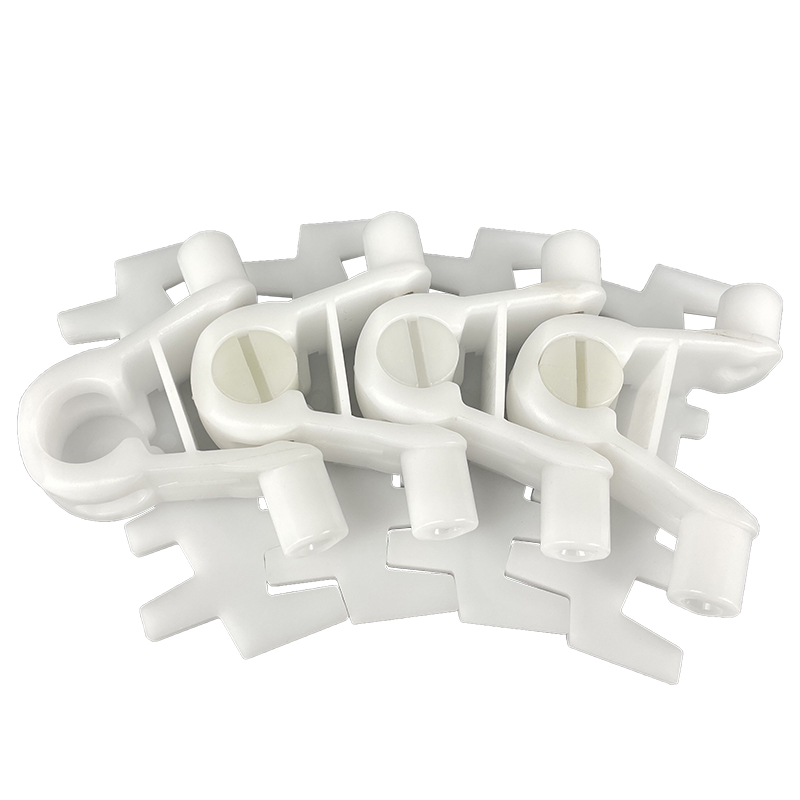

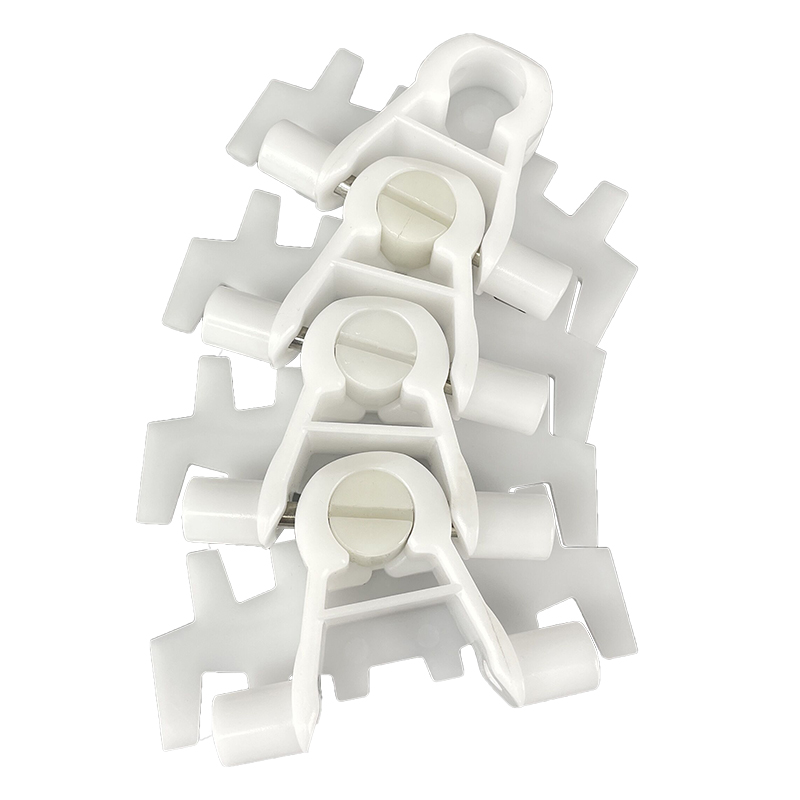

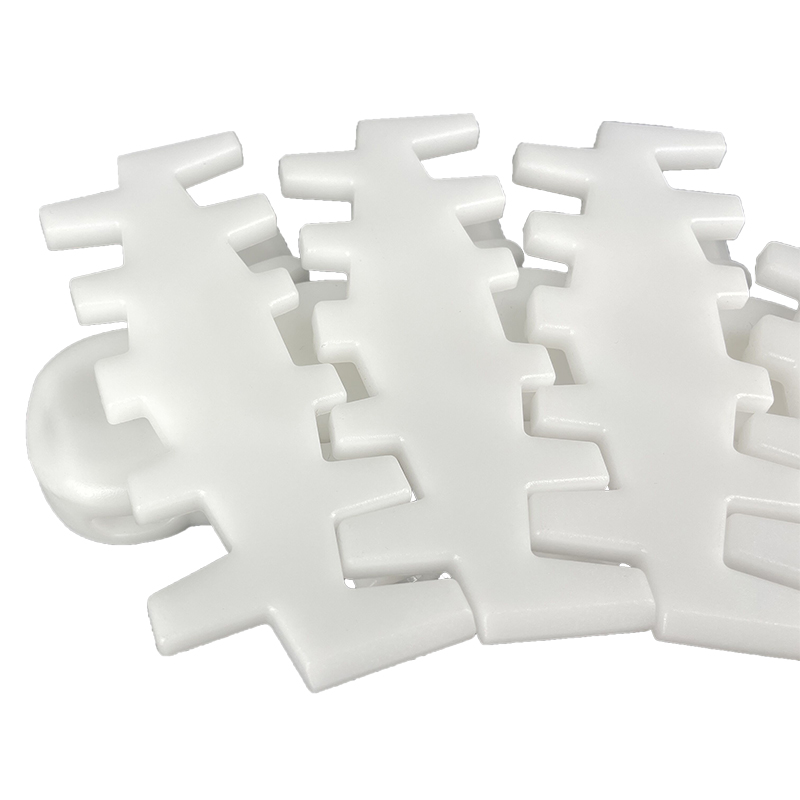

SC-103A Flexible Chain

• Description：

Widely used in Food factories, Beverage factories, Tetra Pak Packaging, Pharmaceutical, Cosmetics, Dairy, FMCG, and other industries, Optimizes the movement of goods within your production line. From raw materials to packaging, SmartConvey ensures a smooth process.

• Specifications：

  Chain Model	SC-63A	SC-83A	SC-103A	SC-140A	SC-175A	SC-295A
  Chain Width	63mm	83mm	103mm	140mm	175mm	295mm
  Pitch	25.4mm	33.5mm	35.5mm	33.5mm	33.5mm	33.5mm
  Weight (Kgs/Meter)	0.8Kgs	1.2Kgs	1.6Kgs	2Kgs	2.2Kgs	2.8Kgs
  Min Radius	150mm	160mm	170mm	250mm	350mm	600mm
  Chain Max Working Tension	600N	800N	850N	1000N	1200N	1500N
  Max Product Weight	10 Kgs	10 Kgs	10Kgs	15Kgs	15Kgs	15Kgs
  Total Load	200 Kgs	250 Kgs	300Kgs	400Kgs	500Kgs	600Kgs
  Working Temperature	-10℃-60℃	-10℃-60℃	-10℃-60℃	-10℃-60℃	-10℃-60℃	-10℃-60℃
  Max Conveyor Length	30M	30M	30M	30M	30M	30M
  Max Speed	50M/Minute	50M/Minute	50M/Minute	50M/Minute	50M/Minute	50M/Minute
  Conveying Item Width Range	15-140mm	20-200mm	25-220mm	25-320mm	30-350mm	50-500mm
  Material	Body: POM / Plastic Pin : PA6 / Pin: SUS201

• Applications:

Widely used in food factories, beverage factories, tetra pak packaging, cosmetics, pharmaceuticals, dairy, FMCG, and other industries.
